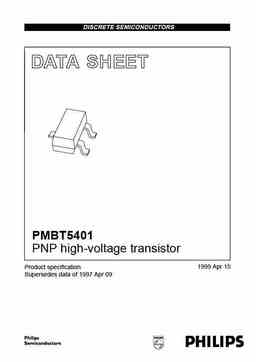

DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D088 PMBT5401 PNP high-voltage transistor 1999 Apr 15 Product specification Supersedes data of 1997 Apr 09 Philips Semiconductors Product specification PNP high-voltage transistor PMBT5401 FEATURES PINNING • Low current (max. 300 mA) PIN DESCRIPTION • High voltage (max. 150 V). 1 base 2 emitter APPLICATIONS 3 collector • Switching and amplification in high voltage applications such as telephony. handbook, halfpage DESCRIPTION 3 3 PNP high-voltage transistor in a SOT23 plastic package. NPN complement: PMBT5550. 1 MARKING 2 1 2 TYPE NUMBER MARKING CODE(1) Top view MAM256 PMBT5401 ?2L Note Fig.1 Simplified outline (SOT23) and symbol. 1. ? = p : Made in Hong Kong. ? = t : Made in Malaysia. LIMITING VALUES
