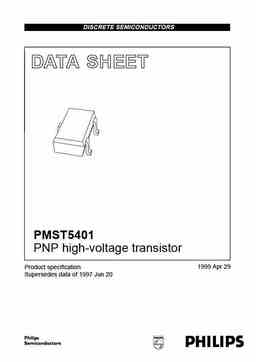

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D187 PMST5401 PNP high-voltage transistor 1999 Apr 29 Product specification Supersedes data of 1997 Jun 20 Philips Semiconductors Product specification PNP high-voltage transistor PMST5401 FEATURES PINNING • Low current (max. 300 mA) PIN DESCRIPTION • High voltage (max. 150 V). 1 base 2 emitter APPLICATIONS 3 collector • General purpose • Telephony. 3 handbook, halfpage DESCRIPTION 3 PNP high-voltage transistor in a SOT323 plastic package. NPN complements: PMST5550 and PMST5551. 1 MARKING 2 TYPE NUMBER MARKING CODE(1) 1 2 PMST5401 ?2L Top view MAM048 Note Fig.1 Simplified outline (SOT323) and symbol. 1. ? = - : Made in Hong Kong. ? = t : Made in Malaysia. LIMITING VALUES In accordance with the Abso
