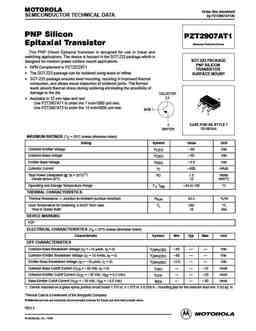

MOTOROLA Order this document SEMICONDUCTOR TECHNICAL DATA by PZT2907AT1/D PNP Silicon PZT2907AT1 Epitaxial Transistor Motorola Preferred Device This PNP Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is SOT-223 PACKAGE designed for medium power surface mount applications. PNP SILICON • NPN Complement is PZT2222AT1 TRANSISTOR • The SOT-223 package can be soldered using wave or reflow SURFACE MOUNT • SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering eliminating the possibility of damage to the die. COLLECTOR 2,4 • Available in 12 mm tape and ree
