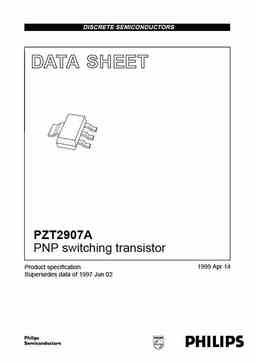

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D087 PZT2907A PNP switching transistor 1999 Apr 14 Product specification Supersedes data of 1997 Jun 02 Philips Semiconductors Product specification PNP switching transistor PZT2907A FEATURES PINNING • High current (max. 600 mA) PIN DESCRIPTION • Low voltage (max. 60 V). 1 base 2, 4 collector APPLICATIONS 3 emitter • Switching and linear amplification. DESCRIPTION handbook, halfpage 4 2, 4 PNP switching transistor in a SOT223 plastic package. NPN complement: PZT2222A. 1 3 1 2 3 Top view MAM288 Fig.1 Simplified outline (SOT223) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCBO collector-base voltage open emitter -
