View rn1401-rn1406 datasheet:

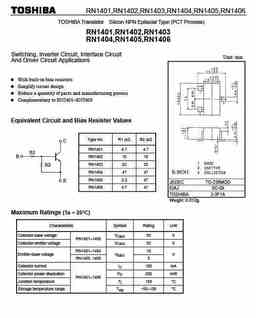

RN1401,RN1402,RN1403,RN1404,RN1405,RN1406 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1401,RN1402,RN1403 RN1404,RN1405,RN1406 Switching, Inverter Circuit, Interface Circuit Unit: mm And Driver Circuit Applications With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2401~RN2406 Equivalent Circuit and Bias Resister Values Type No. R1 (k? R2 (k? RN1401 4.7 4.7 RN1402 10 10 RN1403 22 22 RN1404 47 47 RN1405 2.2 47 JEDEC TO-236MOD RN1406 4.7 47 EIAJ SC-59 TOSHIBA 2-3F1A Weight: 0.012g Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Collector-base voltage VCBO 50 V RN1401~1406 Collector-emitter voltage VCEO 50 V RN1401~1404 10 Emitter-base v
