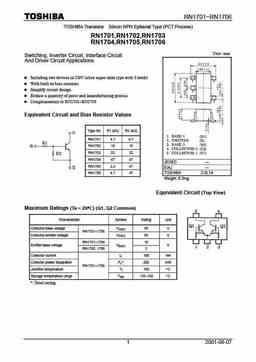

RN1701~RN1706 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1701,RN1702,RN1703 RN1704,RN1705,RN1706 Unit: mm Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Including two devices in USV (ultra super mini type with 5 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2701~RN2706 Equivalent Circuit and Bias Resistor Values Type No. R1 (k?) R2 (k?) RN1701 4.7 4.7 RN1702 10 10 RN1703 22 22 RN1704 47 47 JEDEC ? RN1705 2.2 47 EIAJ ? RN1706 4.7 47 TOSHIBA 2-2L1A Weight: 6.2mg Equivalent Circuit (Top View) Maximum Ratings (Ta = 25° °C) (Q1, Q2 Common) ° ° Characteristic Symbol Rating Unit Collector-base voltage VCBO
