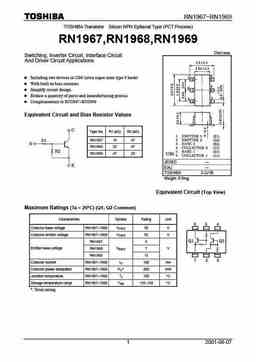

RN1967~RN1969 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1967,RN1968,RN1969 Unit:mm Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Including two devices in US6 (ultra super mini type 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2967~RN2969 Equivalent Circuit and Bias Resistor Values Type No. R1 (k?) R2 (k?) RN1967 10 47 RN1968 22 47 RN1969 47 22 JEDEC ? EIAJ ? TOSHIBA 2-2J1B Weight: 6.8mg Equivalent Circuit (Top View) Maximum Ratings (Ta = 25� �C) (Q1, Q2 Common) � � Characteristic Symbol Rating Unit Collector-base voltage RN1967~1969 VCBO 50 V Collector-emitter voltage RN1967~1969 VCEO 50 V RN19
