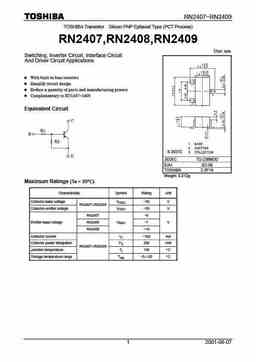

RN2407~RN2409 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2407,RN2408,RN2409 Unit: mm Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1407~1409 Equivalent Circuit JEDEC TO-236MOD EIAJ SC-59 TOSHIBA 2-3F1A Weight: 0.012g Maximum Ratings (Ta = 25° °C) ° ° Characteristic Symbol Rating Unit Collector-base voltage VCBO -50 V RN2407~RN2409 Collector-emitter voltage VCEO -50 V RN2407 -6 Emitter-base voltage RN2408 VEBO -7 V RN2409 -15 Collector current IC -100 mA Collector power dissipation PC 200 mW RN2407~RN2409 Junction temperature Tj 150 C Storage temperature range Ts
