View rn2607-rn2609 datasheet:

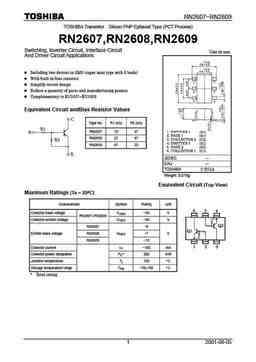

RN2607~RN2609 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2607,RN2608,RN2609 Switching, Inverter Circuit, Interface Circuit Unit in mm And Driver Circuit Applications Including two devices in SM6 (super mini type with 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1607~RN1609 Equivalent Circuit andBias Resistor Values Type No. R1 (k?) R2 (k?) RN2607 10 47 RN2608 22 47 RN2609 47 22 JEDEC ? EIAJ ? TOSHIBA 2-3N1A Weight: 0.015g Eauivalent Circuit (Top View) Maximum Ratings (Ta = 25° °C) ° ° Characteristic Symbol Rating Unit Collector-base voltage VCBO -50 V RN2607~RN2609 Collector-emitter voltage VCEO -50 V RN2607 -6 Emitter-bas
