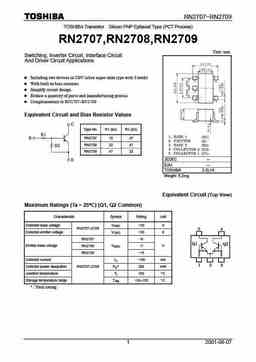

RN2707 RN2709 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2707,RN2708,RN2709 Unit mm Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Including two devices in USV (ultra super mini type with 5 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1707 RN1709 Equivalent Circuit and Bias Resistor Values Type No. R1 (k?) R2 (k?) RN2707 10 47 RN2708 22 47 RN2709 47 22 JEDEC ? EIAJ ? TOSHIBA 2-2L1A Weight 6.2mg Equivalent Circuit (Top View) Maximum Ratings (Ta = 25 C) (Q1, Q2 Common) Characteristic Symbol Rating Unit Collector-base voltage VCBO -50 V RN2707 2709 Collector-emitter voltage VCEO -50 V RN2707... See More ⇒
