View s0602h datasheet:

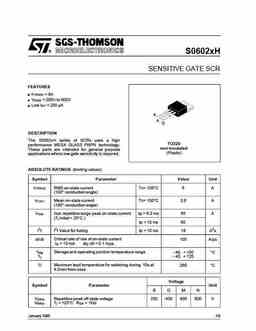

? S0602xH SENSITIVE GATE SCR FEATURES I =6A T(RMS) VDRM = 200V to 800V Low IGT < 200 µA K A G DESCRIPTION The S0602xH series of SCRs uses a high TO220 performance MESA GLASS PNPN technology. non-insulated These parts are intended for general purpose (Plastic) applications where low gate sensitivity is required. ABSOLUTE RATINGS (limiting values) Symbol Parameter Value Unit I RMS on-state current Tc= 100°C6 A T(RMS) (180° conductionangle) I Mean on-state current Tc= 100°C 3.8 A T(AV) (180° conductionangle) I Non repetitive surge peak on-state current tp = 8.3 ms 65 A TSM (Tj initial = 25°C) tp = 10 ms 60 I2t I2t Value for fusing tp = 10 ms 18 A2s dI/dt Critical rate of rise of on-state current 100 A/µs I =10mA di /dt = 0.1 A/µs. G G T Storage and operating
