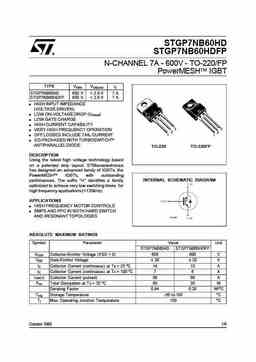

STGP7NB60HD STGP7NB60HDFP ? N-CHANNEL 7A - 600V - TO-220/FP PowerMESH? IGBT TYPE VCES VCE(sat) IC STGP7NB60HD 600 V < 2.8 V 7 A STGP7NB60HDFP 600 V < 2.8 V 7 A HIGH INPUT IMPEDANCE (VOLTAGE DRIVEN) LOW ON-VOLTAGE DROP (V ) cesat LOW GATE CHARGE HIGH CURRENT CAPABILITY 3 3 VERY HIGH FREQUENCY OPERATION 2 2 OFF LOSSES INCLUDE TAIL CURRENT 1 1 CO-PACKAGED WITH TURBOSWITCH? ANTIPARALLEL DIODE TO-220 TO-220FP DESCRIPTION Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH? IGBTs, with outstanding INTERNAL SCHEMATIC DIAGRAM perfomances. The suffix ”H” identifies a family optimized to achieve very low switching times for high frequency applications (<120kHz). APP
