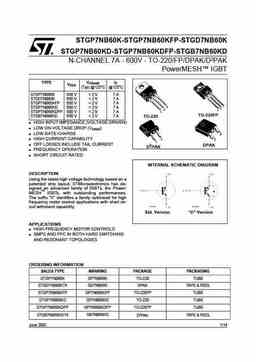

View stgp7nb60k datasheet:

STGP7NB60K-STGP7NB60KFP-STGD7NB60K STGP7NB60KD-STGP7NB60KDFP-STGB7NB60KD N-CHANNEL 7A - 600V - TO-220/FP/DPAK/D2PAK PowerMESH™ IGBT TYPE VCES VCE(sat) IC (Typ) @125°C @125°C STGP7NB60K 600 V < 2 V 7 A STGD7NB60K 600 V < 2 V 7 A STGP7NB60KFP 600 V < 2 V 7 A 3 3 STGP7NB60KD 600 V < 2 V 7 A 2 2 1 STGP7NB60KDFP 600 V < 2 V 7 A 1 TO-220FP STGB7NB60KD 600 V < 2 V 7 A TO-220 HIGH INPUT IMPEDANCE (VOLTAGE DRIVEN) LOW ON-VOLTAGE DROP (Vcesat) LOW GATE CHARGE 3 HIGH CURRENT CAPABILITY 3 1 1 OFF LOSSES INCLUDE TAIL CURRENT DPAK D2PAK FREQUENCY OPERATION SHORT CIRCUIT RATED INTERNAL SCHEMATIC DIAGRAM DESCRIPTION Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has de- signed an advanced family of IGBTs, the Power-
