View stk405-050 datasheet:

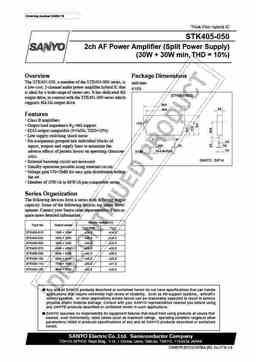

Ordering number:ENN5178 Thick Film Hybrid IC STK405-050 2ch AF Power Amplifier (Split Power Supply) (30W + 30W min, THD = 10%) Overview Package Dimensions The STK405-050, a member of the STK405-000 series, is unit:mm a low-cost, 2-channel audio power amplifier hybrid IC that 4158 is ideal for a wide range of stereo sets. It has dedicated 6? [STK405-050] output drive, in contrast with the STK401-000 series which supports 6?/3? output drive. 64.0 55.6 8.5 Features • Class B amplifiers 3.6 • Output load impedance RL=6? support • EIAJ-output compatible (f=1kHz, THD=10%) • Low supply switching shock noise 114 • Pin assignment grouped into individual blocks of 2.9 2.54 0.5 0.4 inputs, outputs and supply lines to minimize the 5.5 13?2.54=33.02 adverse effects of patter
