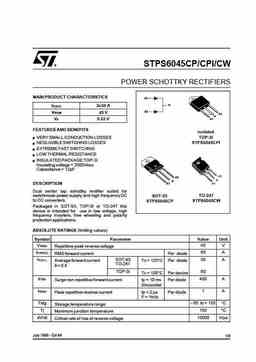

? STPS6045CP/CPI/CW POWER SCHOTTKY RECTIFIERS MAIN PRODUCT CHARACTERISTICS A1 K IF(AV) 2x30 A A2 V 45 V RRM A2 K A1 V 0.63 V F FEATURES AND BENEFITS isolated VERY SMALL CONDUCTION LOSSES TOP-3I STPS6045CPI NEGLIGIBLESWITCHING LOSSES EXTREME FAST SWITCHING LOW THERMAL RESISTANCE INSULATED PACKAGE TOP-3I Insulatingvoltage = 2500V RMS Capacitance = 12pF A2 A2 K K A1 A1 DESCRIPTION Dual center tap schottky rectifier suited for TO-247 switchmode power supply and high frequency DC SOT-93 to DC converters. STPS6045CW STPS6045CP Packaged in SOT-93, TOP-3I or TO-247 this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protectionapplications. ABSOLUTE RATINGS (limiting values) Symbol Parameter Value Unit V 45... See More ⇒
