View bb135 datasheet:

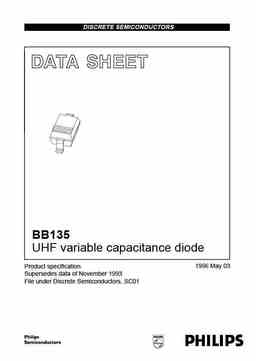

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB135 UHF variable capacitance diode 1996 May 03 Product specification Supersedes data of November 1993 File under Discrete Semiconductors, SC01 Philips Semiconductors Product specification UHF variable capacitance diode BB135 FEATURES • Excellent linearity • Very small plastic SMD package. handbook, 4 columns ka • C28: 1.9 pF; ratio: 10 • Low series resistance. MAM130 APPLICATIONS Marking code: P5. • Electronic tuning in UHF television Cathode side indicated by a white bar. tuners. • Radio upconversion concepts Fig.1 Simplified outline (SOD323) and symbol. • VCO. LIMITING VALUES DESCRIPTION In accordance with the Absolute Maximum Rating System (IEC 134). The BB135 is a variable capacitance SYMBOL PARAMETER
