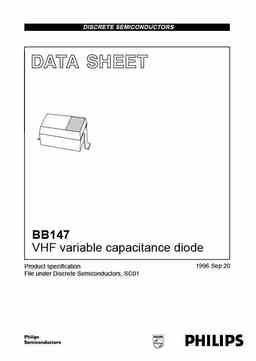

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB147 VHF variable capacitance diode 1996 Sep 20 Product specification File under Discrete Semiconductors, SC01 Philips Semiconductors Product specification VHF variable capacitance diode BB147 FEATURES • Ultra high ratio • Excellent matching to 2% DMA handbook, 4 columns (Direct Matching Assembly) ka • Very small plastic SMD package • C28: 2.6 pF; ratio 40. MAM130 APPLICATIONS • Electronic tuning in television Marking code: P7. tuners with extended VHF range Cathode side indicated by a bar. • Voltage controlled oscillators Fig.1 Simplified outline (SOD323) and symbol. (VCO). DESCRIPTION LIMITING VALUES The BB147 is a variable capacitance In accordance with the Absolute Maximum Rating System (IEC 134). diode,
