View ir2104 datasheet:

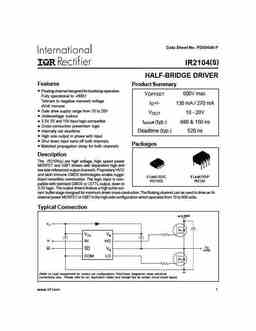

Data Sheet No. PD60046-P ( ) IR2104 S HALF-BRIDGE DRIVER Features Product Summary • Floating channel designed for bootstrap operation VOFFSET 600V max. Fully operational to +600V Tolerant to negative transient voltage IO+/- 130 mA / 270 mA dV/dt immune • Gate drive supply range from 10 to 20V VOUT 10 - 20V • Undervoltage lockout • 3.3V, 5V and 15V input logic compatible ton/off (typ.) 680 & 150 ns • Cross-conduction prevention logic • Internally set deadtime Deadtime (typ.) 520 ns • High side output in phase with input • Shut down input turns off both channels Packages • Matched propagation delay for both channels Description The IR2104(s) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Prop
