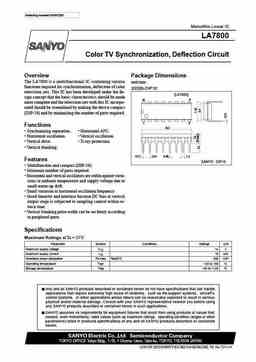

Ordering number:ENN725F Monolithic Linear IC LA7800 Color TV Synchronization, Deflection Circuit Overview Package Dimensions The LA7800 is a multifunctional IC containing various unit:mm functions required for synchronization, deflection of color 3006B-DIP16 television sets. This IC has been developed under the de- [LA7800] sign concept that the basic characteristics should be made 16 9 more complete and the television sets with this IC incorpo- rated should be streamlined by making the device compact (DIP-16) and by minimizing the number of parts required. 1 8 Functions 19.2 • Synchonizing separation. • Horizontal AFC. • Horizontal oscillation. • Vertical oscillation. • Vertical drive. • X-ray protection. • Vertical blanking. 0.71 2.54 0.48 1.2 Features SANYO : DI
