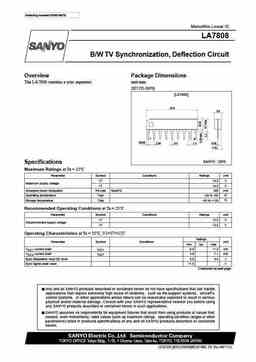

Ordering number:ENN1487B Monolithic Linear IC LA7808 B/W TV Synchronization, Deflection Circuit Overview Package Dimensions The LA7808 contains a sync separator. unit:mm 3017D-SIP9 [LA7808] 22.0 3.0 1 9 (0.84) 2.54 0.5 1.3 0.25 1.35 SANYO : SIP9 Specifications Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit V1 14.0 V Maximum supply voltage V7 14.0 V Allowable power dissipation Pd max Ta? 60?C 300 mW Operating temperature Topr –20 to +85 ?C Storage temperature Tstg –55 to +125 ?C Recommended Operating Conditions at Ta = 25?C Parameter Symbol Conditions Ratings Unit V1 12.0 V Recommended supply voltage V7 12.0 V Operating Characteristics at Ta = 25?C, V1=V7=12V Ratings Parameter Symbol Conditions Unit min typ max VCC1 current drain ICC
