View bd5332 bd5333 bd5334 bd5335 bd5336 bd5337 bd5338 bd5339 bd5340 bd5341 datasheet:

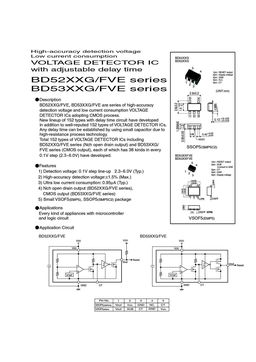

High-accuracy detection voltage Low current consumption BD52XXG BD53XXG VOLTAGE DETECTOR IC 5 with adjustable delay time 4 1pin : RESET output 2pin : Supply voltage 3pin : GND 4pin : N.C. BD52XXG/FVE series 5pin : CT 1 2 3 BD53XXG/FVE series (UNIT:mm) 2.9±0.2 (5) (4) Description BD52XXG/FVE, BD53XXG/FVE are series of high-accuracy detection voltage and low current consumption VOLTAGE DETECTOR ICs adopting CMOS process. ( ) ( ) (3) 1 2 +0.05 0.13 –0.03 New lineup of 152 types with delay time circuit have developed in addition to well-reputed 152 types of VOLTAGE DETECTOR ICs. Any delay time can be established by using small capacitor due to +0.05 0.95 0.42 high-resistance process technology. –0.04 0.1 Total 152 types of VOLTAGE DETECTOR ICs
