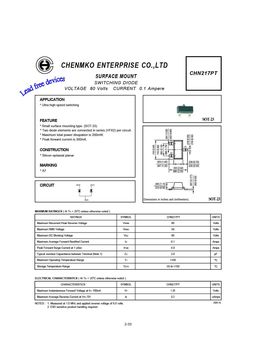

CHENMKO ENTERPRISE CO.,LTD CHN217PT SURFACE MOUNT SWITCHING DIODE VOLTAGE 80 Volts CURRENT 0.1 Ampere APPLICATION * Ultra high speed switching SOT-23 FEATURE * Small surface mounting type. (SOT-23) * Two diode elements are connected in series (VFX2) per circuit. * Maximum total power disspation is 200mW. * Peak forward current is 300mA. (1) (3) CONSTRUCTION (2) * Silicon epitaxial planar ( ) ( ) .055 1.40 .028 0.70 ( ) ( ) MARKING .047 1.20 .020 0.50 ( ) .103 2.64 * A7 .086 (2.20) ( ) .045 1.15 (2) (1) CIRCUIT ( ) .033 0.85 (3) Dimensions in inches and (millimeters) SOT-23 MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted ) RATINGS SYMBOL CHN217PT UNITS Maximum Recurrent Peak Reverse Voltage VRRM 80 Volts Maximum RMS Voltage VRMS 56 Volts Maxim... See More ⇒
