cmsh1-100_cmsh1-40_cmsh1-60_cmsh1-20

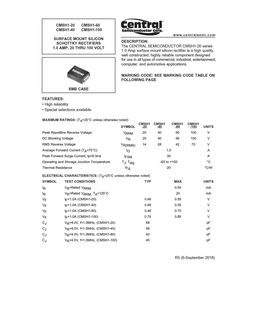

CMSH1-20 CMSH1-60 CMSH1-40 CMSH1-100 www.centralsemi.com SURFACE MOUNT SILICON DESCRIPTION: SCHOTTKY RECTIFIERS The CENTRAL SEMICONDUCTOR CMSH1-20 series 1.0 AMP, 20 THRU 100 VOLT 1.0 Amp surface mount silicon rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications. MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE SMB CASE FEATURES: • High reliability • Special selections available MAXIMUM RATINGS: (TA=25°C unless otherwise noted) CMSH1 CMSH1 CMSH1 CMSH1 SYMBOL -20 -40 -60 -100 UNITS Peak Repetitive Reverse Voltage VRRM 20 40 60 100 V DC Blocking Voltage VR 20 40 60 100 V RMS Reverse Voltage VR(RMS) 14 28 42 70 V Average Forwa
