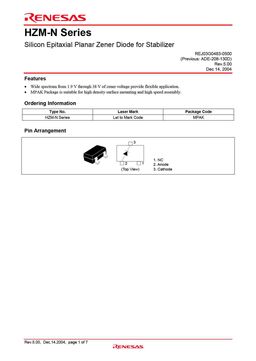

HZM-N Series Silicon Epitaxial Planar Zener Diode for Stabilizer REJ03G0483-0500 (Previous: ADE-208-130D) Rev.5.00 Dec 14, 2004 Features • Wide spectrum from 1.9 V through 38 V of zener voltage provide flexible application. • MPAK Package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. Laser Mark Package Code HZM-N Series Let to Mark Code MPAK Pin Arrangement 3 1. NC 2 1 2. Anode (Top View) 3. Cathode Rev.5.00, Dec.14.2004, page 1 of 7 HZM-N Series Absolute Maximum Ratings (Ta = 25°C) Item Symbol Value Unit Power dissipation Pd *1 200 mW Junction temperature Tj 150 °C Storage temperature Tstg -55 to +150 °C Note: 1. See Fig. 3. Electrical Characteristics (Ta = 25°C) Zener Vo
