mmf150s060b

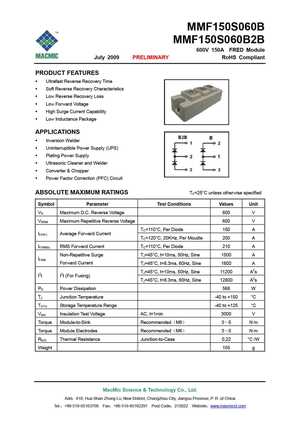

MMF150S060B MMF150S060B2B 600V 150A FRED Module July 2009 PRELIMINARY RoHS Compliant PRODUCT FEATURES Ultrafast Reverse Recovery Time Soft Reverse Recovery Characteristics Low Reverse Recovery Loss Low Forward Voltage High Surge Current Capability Low Inductance Package APPLICATIONS Inversion Welder Uninterruptible Power Supply (UPS) Plating Power Supply Ultrasonic Cleaner and Welder Converter & Chopper Power Factor Correction (PFC) Circuit ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified Symbol Parameter Test Conditions Values Unit VR Maximum D.C. Reverse Voltage 600 V VRRM Maximum Repetitive Reverse Voltage 600 V TC=110°C, Per Diode 150 A IF(AV) Average Forward Current TC=120°C, 20KHz, Per Moudle 200 A
