View pc817 pc827 pc837 pc847 datasheet:

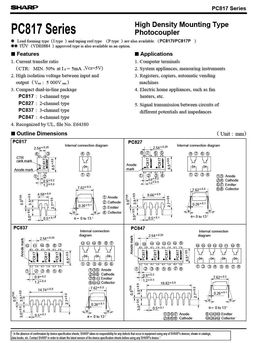

PC817 Series High Density Mounting Type PC817 Series Photocoupler ( ) ( ) ( ) Lead forming type I type and taping reel type P type are also available. PC817I/PC817P .. ( ) TUV VDE0884 approved type is also available as an option. Features Applications 1. Current transfer ratio 1. Computer terminals ( ,VCE=5V) CTR: MIN. 50% at I = 5mA 2. System appliances, measuring instruments F 2. High isolation voltage between input and 3. Registers, copiers, automatic vending ( ) output V : 5 000V machines iso rms 3. Compact dual-in-line package 4. Electric home appliances, such as fan PC817 : 1-channel type heaters, etc. PC827 : 2-channel type 5. Signal transmission between circuits of PC837 : 3-channel type different potentials and impedances PC847 : 4-channel typ
