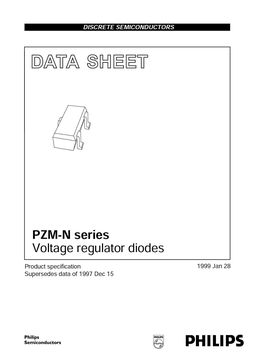

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D114 PZM-N series Voltage regulator diodes 1999 Jan 28 Product specification Supersedes data of 1997 Dec 15 Philips Semiconductors Product specification Voltage regulator diodes PZM-N series FEATURES PINNING Total power dissipation PIN DESCRIPTION max. 300 mW 1 anode Small plastic package suitable for 2 not connected surface mounted design 3 cathode Wide working voltage range nom. 2.4 to 75 V (E24 range). handbook, halfpage 3 APPLICATIONS General regulation functions. 2 1 n.c. DESCRIPTION 3 Low power general purpose voltage 1 2 regulator diode in a SOT346 (SC59) Top view MAM378 plastic package, suitable for surface mounted design. Fig.1 Simplified outline (SOT346; SC59) and symbol... See More ⇒
