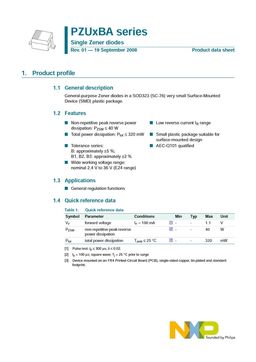

PZUxBA series Single Zener diodes Rev. 01 — 19 September 2008 Product data sheet 1. Product profile 1.1 General description General-purpose Zener diodes in a SOD323 (SC-76) very small Surface-Mounted Device (SMD) plastic package. 1.2 Features Non-repetitive peak reverse power Low reverse current IR range dissipation: PZSM ≤ 40 W Total power dissipation: Ptot ≤ 320 mW Small plastic package suitable for surface-mounted design Tolerance series: AEC-Q101 qualified B: approximately ±5%; B1, B2, B3: approximately ±2% Wide working voltage range: nominal 2.4 V to 36 V (E24 range) 1.3 Applications General regulation functions 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit [1] VF forward voltage IF = 100 mA -
