rp107-series

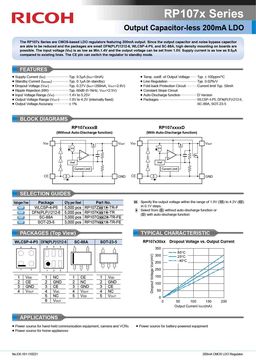

 RP107x Series Output Capacitor-less 200mA LDO The RP107x Series are CMOS-based LDO regulators featuring 200mA output. Since the output capacitor and noise bypass capacitor are able to be reduced and the packages are small DFN(PLP)1212-6, WLCSP-4-P5, and SC-88A, high density mounting on boards are possible. The input voltage (VIN) is as low as Min.1.4V and the output voltage can be set from 1.0V. Supply current is as low as 9.5μA compared to existing lines. The CE pin can switch the regulator to standby mode. FEATURES • Supply Current (ISS) ························Typ. 9.5μA (IOUT=0mA) • Temp. coeff. of Output Voltage ······· Typ. ± 100ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (In standby) â
