s1206-series

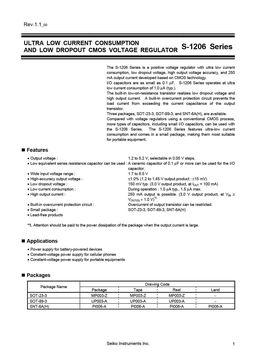

Rev.1.1_00 ULTRA LOW CURRENT CONSUMPTION S-1206 Series AND LOW DROPOUT CMOS VOLTAGE REGULATOR The S-1206 Series is a positive voltage regulator with ultra low current consumption, low dropout voltage, high output voltage accuracy, and 250 mA output current developed based on CMOS technology. I/O capacitors are as small as 0.1 µF. S-1206 Series operates at ultra low current consumption of 1.0 µA (typ.). The built-in low-on-resistance transistor realizes low dropout voltage and high output current. A built-in overcurrent protection circuit prevents the load current from exceeding the current capacitance of the output transistor. Three packages, SOT-23-3, SOT-89-3, and SNT-6A(H), are available. Compared with voltage regulators using a conventional CMOS process,
