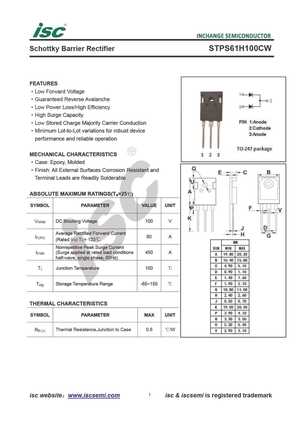

Schottky Barrier Rectifier STPS61H100CW FEATURES Low Forward Voltage Guaranteed Reverse Avalanche Low Power Loss/High Efficiency High Surge Capacity Low Stored Charge Majority Carrier Conduction Minimum Lot-to-Lot variations for robust device performance and reliable operation MECHANICAL CHARACTERISTICS Case Epoxy, Molded Finish All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable ABSOLUTE MAXIMUM RATINGS(T =25 ) a SYMBOL PARAMETER VALUE UNIT DC Blocking Voltage 100 V V RRM Average Rectified Forward Current I 60 A F(AV) (Rated V ) T = 133 R C Nonrepetitive Peak Surge Current I (Surge applied at rated load conditions 450 A FSM half-wave, single phase, 60Hz) T Junction Temperature 150 J T Storage Tempe... See More ⇒
