asdm2301.pdf Principales características:

asdm2301asdm2301

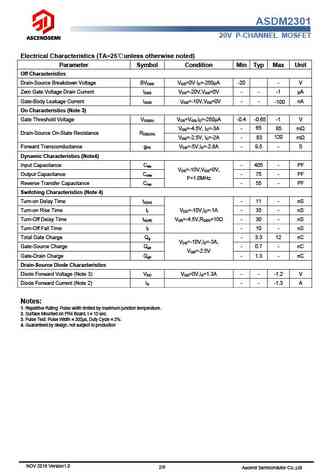

ASDM2301 20V P-CHANNEL MOSFET Product Summary Features High Power and current handing capability VDSS RDS(ON) RDS(ON) ID (Typ) (Typ) @-4.5V @-2.5V Lead free product is acquired Surface Mount Package -20V 65m 83m -3 A Application PWM applications Load switch Power management top view D G SOT-23 Absolute Maximum Ratings (TA=25 unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage -20 V VDS Gate-Source Voltage 10 V VGS Drain Current-Continuous -3 A I D Drain Current -Pulsed (Note 1) -10 A I DM Maximum Power Dissipation 1 W P D Operating Junction and Storage Temperature Range -55 To 150 T ,T J STG Thermal Characteristic Thermal Resistance,Junction-to-Ambient (Note 2) R JA 125 /W NOV 2018 Version1.0 1/8 Ascend Semicondutor Co.,Ltd ASDM2301 20V P-CHANNEL MOSFET Electrical
