asa70r950e asd70r950e ase70r950e.pdf Principales características:

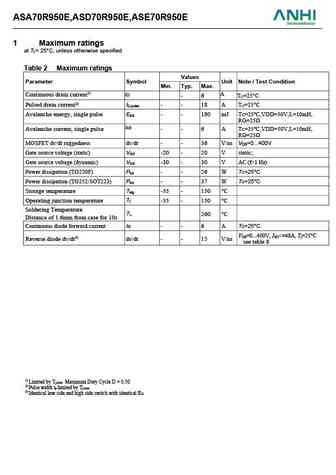

ASA70R950E,ASD70R950E,ASE70R950E MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback. PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance RDS(ON) = 0.870 (typ.) Easy to control Gate switching Enhancement mode Vth = 2.8 to 4.2 V Table 1 Key Performance Parameters Parameter Value Unit V 750 V DS @ T j,max R 950 DS(on),max m Q 10.3 nC g,typ I 18 A D,pulse 3. Packaging and Internal Circuit Part Name Package Marking ASA70R950E TO220F ASA70R950E ASD70R950E TO252 ASD70R950E ASE70R950E SOT223-2L ASE70R950E TO220F SOT223 TO252 ASA70R950E,ASD70R950E,ASE70R950E 1 Maximum ratings at Tj = 25 C, unless otherwise specified Table 2 Maximum ratings Values Parameter Symbol Unit Note / Test Condition Min. Typ. Max. Continuous drain current1) I A D - 6 T =25 C C C Pulsed
