jjt60n65uh.pdf datasheet:

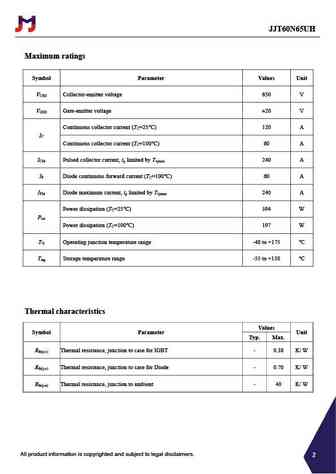

650V 60A Trench and Field Stop IGBTJJT60N65UHKey performance:TO-3P V =650VCE I =60A@T =100C C V =1.9VCE(sat)Features: Trench and field-stop technology.GC Easy parallel switching capability.EBenefits: High efficiency for inverters. High ruggedness performance. RoHS compliant.Applications: PFC applications Welding machinesPackage parametersType Marking Package Packaging MethodJJT60N65UH T6065UH TO-3P TubeAll product information is copyrighted and subject to legal disclaimers. REV A.1.1 | MAR 20241JJT60N65UHMaximum ratingsSymbol Parameter Values UnitV Collector-emitter voltage 650 VCESV Gate-emitter voltage 20 VGESContinuous collector current (T =25) 120 ACICContinuous collector current (T =100) 60 ACI Pulsed collector current, t limited by T 240 ACM p vjmaxI Di
