2n3583 2n3584 2n3585.pdf datasheet:

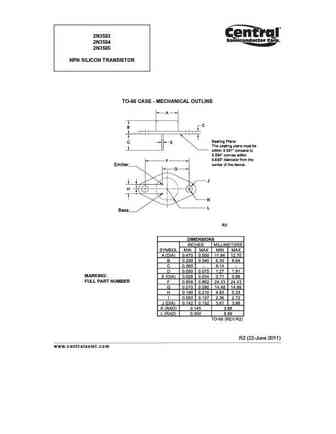

2N35832N3584www.centralsemi.com2N3585DESCRIPTION:NPN SILICON TRANSISTORThe CENTRAL SEMICONDUCTOR 2N3583 Series types are NPN Silicon Transistors designed for high speed switching and high voltage amplifier applications.MARKING: FULL PART NUMBERTO-66 CASEMAXIMUM RATINGS: (TC=25C) SYMBOL 2N3583 2N3584 2N3585 UNITSCollector-Base Voltage VCBO 250 375 500 VCollector-Emitter Voltage VCEO 175 250 300 VEmitter-Base Voltage VEBO 6.0 6.0 6.0 VContinuous Collector Current IC 1.0 2.0 2.0 APeak Collector Current ICM 5.0 AContinuous Base Current IB 1.0 APower Dissipation PD 35 WOperating and Storage Junction Temperature TJ, Tstg -65 to +200 CThermal Resistance JC 5.0 C/WELECTRICAL CHARACTERISTICS: (TC=25C unless otherwise noted)2N3583 2N3584 2N3585SYMBOL TEST CONDITIONS MIN MAX MIN MAX MIN MAX UNITSICEV VCE=225V, VEB=1.5V - 1.0 - - - - mAI
