2n3585.pdf datasheet:

2n35852n3585

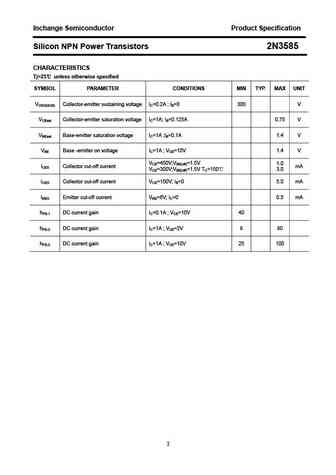

Inchange Semiconductor Product Specification Silicon NPN Power Transistors 2N3585 DESCRIPTION With TO-66 package Continuous collector current-IC=2A Power dissipation -PD=35W @TC=25 VCE(SAT)=0.75V(Max)@IC=1A;IB=0.125A APPLICATIONS High speed switching and linear amplification High-voltage operational amplifiers Switching regulators ,converters Deflection stages and high fidelity amplifers PINNING (See Fig.2) PIN DESCRIPTION1 Base 2 EmitterFig.1 simplified outline (TO-66) and symbol 3 CollectorAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 500 V VCEO Collector-emitter voltage Open base 300 V VEBO Emitter-base voltage Open collector 6 V IC Collector current 2 A ICM Collector current-Peak 5 AIB Base current 1 APT Total power dissipation TC=25 35 W
