bc547.pdf datasheet:

bc547bc547

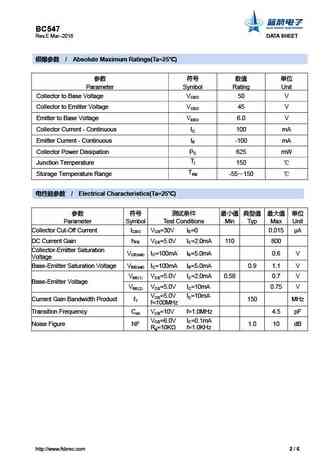

BC547 Rev.E Mar.-2016 DATA SHEET / Descriptions TO-92(R) NPN Silicon NPN transistor in a TO-92(R) Plastic Package. / Features High Voltage, Low Noise. / Applications General purpose and switching application. / Equivalent Circuit / Pinning 1 2 3 PIN1Emitter PIN 2Base PIN 3Collector / hFE Classifications & Marking hFE Classifications A B CSymbol hFE Range 110220 200450 420800 http://www.fsbrec.com 1 / 6 BC547 Rev.E Mar.-2016 DATA SHEET / Absolute Maximum Ratings(Ta=25) Parameter Symbol Rating Unit Collector to Base Voltage VCBO 50 VCollector to Emitter Voltage VCEO 45 VEmitter to Base Voltage VEBO 6.0 VC
