mmbt9015b mmbt9015c mmbt9015d.pdf datasheet:

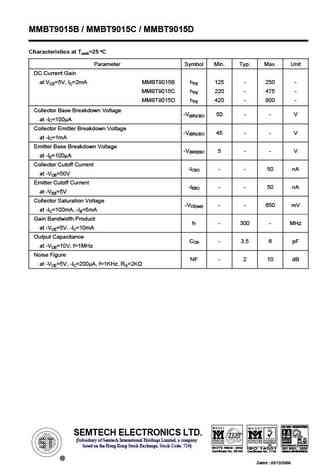

MMBT9015B / MMBT9015C / MMBT9015D PNP Silicon Epitaxial Planar Transistors for switching and AF amplifier applications. As complementary types the NPN transistor MMBT9014B, MMBT9014C and MMBT9014D are recommended. SOT-23 Plastic Package OAbsolute Maximum Ratings (T = 25 C)aParameter Symbol Value Unit Collector Base Voltage -VCBO 50 V Collector Emitter Voltage -VCEO 45 V Emitter Base Voltage -VEBO 5 V Collector Current -IC 100 mA Power Dissipation Ptot 200 mW OJunction Temperature Tj 150 COStorage Temperature Range TS -55 to +150 C.: (495) 795-0805: (495) 234-1603. : info@rct.ru: www.rct.ru MMBT9015B / MMBT9015C / MMBT9015D OCharacteristics at Tamb=25 C Parameter Symbol Min. Typ. Max. UnitDC Current Gain at VCE=5V, IC=2mA MMBT9015B hFE 125 - 250 - MMBT9015C hFE 220 - 475
