Скачать даташит для ap3n5r0mt:

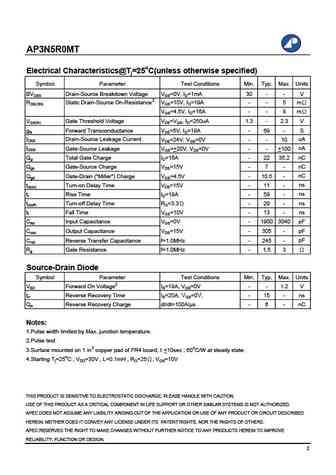

AP3N5R0MT Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test BVDSS 30V D Simple Drive Requirement RDS(ON) 5m Low On-resistance D G RoHS Compliant & Halogen-Free D D S D Description AP3N5R0 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on- resistance and fast switching performance. It provides the designer S with an extreme efficient device for use in a wide range of power S S applications. G PMPAK 5x6 The PMPAK 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) . Symbol Parameter Rating Units VDS Drain-Source Voltage 30 V VGS Gate-Source Voltage +20 V Dr
