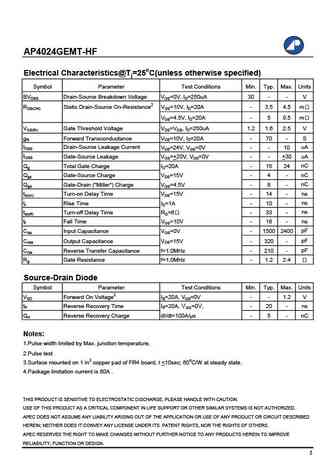

AP4024GEMT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D SO-8 Compatible with Heatsink RDS(ON) 4.5m G Low On-resistance ID4 60A RoHS Compliant & Halogen-Free D S D D Description D AP4024 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on- resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power S applications. S S The PMPAK 5x6 package is special for DC-DC converters G application and the foot print is compatible with SO-8 with backside PMPAK 5x6 heat sink and lower profile. . Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 30 V VGS Gate-S
