Скачать даташит для asdm100n15kq:

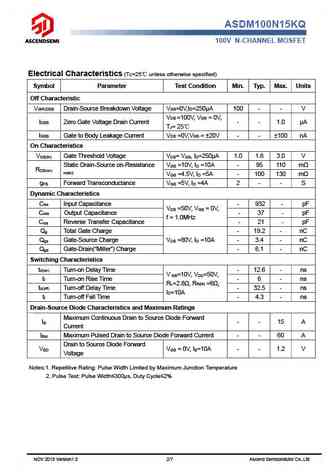

ASDM100N15KQ 100V N-CHANNEL MOSFET Features Product Summary 100V,15A R =95m (Typ.) @ V = 10V DS(ON) GS V DS 100 V R =100m (Typ.) @ V = 4.5V DS(ON) GS Low Total Gate Charge R DS(on),TYP@ VGS=10 V 95 m Low Reverse Transfer Capacitance Improved dv/dt Capability 15 A ID Fast Switching Speed Application Uninterruptible Power Supply(UPS) Inverter System Absolute Maximum Ratings (T =25 unless otherwise specified) C Symbol Parameter Max. Units V Drain-Source Voltage 100 V DSS V Gate-Source Voltage 20 V GSS T = 25 15 A C I Continuous Drain Current D T = 100 10 A C I Pulsed Drain Current note1 60 A DM P Power Dissipation T = 25 55 W D C R Thermal Resistance, Junction to Case 2.72 /W JC T , T Operating and Storage Temperature Range -55 to +175 J STG NOV 2018 Version
