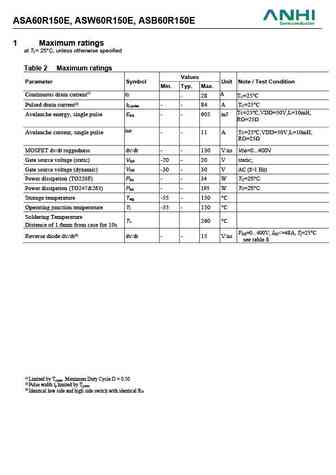

ASA60R150E, ASW60R150E, ASB60R150E MOSFET Silicon N-Channel MOS 1. Applications Boost PFC switch, single-ended flyback or two-transistor forward, Half bridge or Asymmetric half bridge or Series resonance half bridge topologies. PC power, Adaptor, LCD & PDP TV,LED Lighting, Server power, Telecom power, and UPS Application. 2. Features Low drain-source on-resistance RDS(ON) = 0.120 (typ.) Easy to control Gate switching Enhancement mode Vth = 2.8 to 4.2 V Table 1 Key Performance Parameters Parameter Value Unit V 650 V DS @ T j,max R 150 DS(on),max m Q 47.6 nC g,typ I 84 A D,pulse 3. Packaging and Internal Circuit Part Name Package Marking ASA60R150E TO220F ASA60R150E ASW60R150E TO247 ASW60R150E ASB60R150E TO263 ASB60R150E TO220F TO263 TO247 ASA60R150E, ASW60R150E, ASB60R150E 1 Maximum ratings at Tj = 25 C, unless othe
