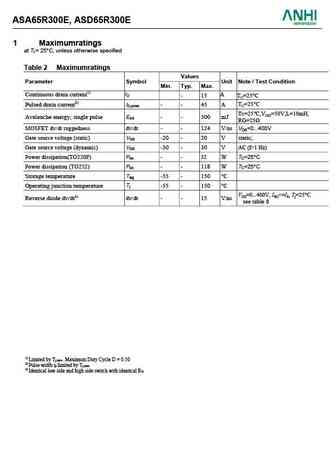

ASA65R300E, ASD65R300E 0E MOSFET Silicon N-Channel MOS 1. Applications Boost PFC switch,single-ended flyback or ended flyback or two-transistor forward, HB or AHB or LLC topologies. For PC power, PD Adaptor,LCD & PDP TV, Lighting,Server power,UPS application. Adaptor,LCD & PDP TV, LED Lighting,Server power,UPS application. 2. Features Low drain-source on-resistance RDS(ON) = resistance RDS(ON) = 0.278 (typ.) Easy to control Gate switching Enhancement mode Vth = 2.8 to 4.2 4.2 V Table 1 Key PerformanceParameters Key PerformanceParameters Parameter Value Unit V 700 V DS @ T j,max R 300 DS(on),max m Q 22.94 nC g,typ I 45 A D,pulse 3. Packaging and Internal Circuit Part Name Package Marking ASA65R300E TO220F ASA65R300E ASD65R300E TO252 ASD65R300E TO220F TO252 TO252 ASA65R300E, ASD65R300E 1 Maximumratings at Tj = 25
