Скачать даташит для asa65r300e_asd65r300e_asb65r300e:

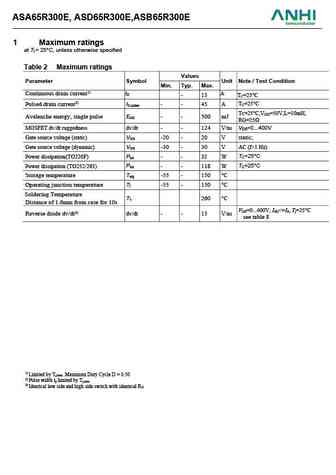

ASA65R300E, ASD65R300E,ASB65R300E MOSFET Silicon N-Channel MOS 1. Applications Boost PFC switch, single-ended flyback or two-transistor forward, HB or AHB or LLC topologies. For PC power, PD Adaptor, LCD & PDP TV, LED Lighting, Server power, UPS application. 2. Features Low drain-source on-resistance RDS(ON) = 0.278 (typ.) Easy to control Gate switching Enhancement mode Vth = 2.8 to 4.2 V Table 1 Key Performance Parameters Parameter Value Unit V 700 V DS @ T j,max R 300 DS(on),max m Q 22.94 nC g,typ I 45 A D,pulse 3. Packaging and Internal Circuit Part Name Package Marking ASA65R300E TO220F ASA65R300E ASD65R300E TO252 ASD65R300E ASB65R300E TO263 ASB65R300E TO220F TO252 TO263 ASA65R300E, ASD65R300E,ASB65R300E 1 Maximum ratings at Tj = 25 C, unless otherwise specified Table 2 Maximum ratings Values Parameter Symb
