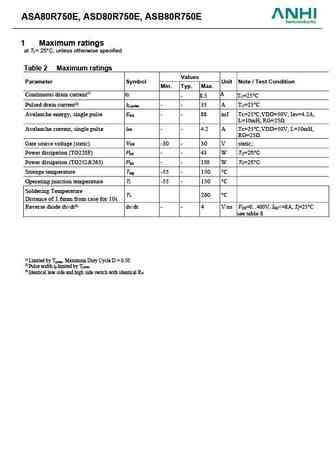

ASA80R750E, ASD80R750E, ASB80R750E MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance RDS(ON) = 620m (typ.) Easy to control Gate switching Enhancement mode Vth = 2.8 to 4.2 V Table 1 Key Performance Parameters Parameter Value Unit V 850 V DS @ T j,max R 750 DS(on),max m Q 18.5 nC g,typ I 35 A D,pulse Body diode dv/dt 50 V/ns 3. Packaging and Internal Circuit Part Name Package Marking ASA80R750E TO220F ASA80R750E ASD80R750E TO252 ASD80R750E ASB80R750E TO263 ASB80R750E TO220F TO263 TO252 ASA80R750E, ASD80R750E, ASB80R750E 1 Maximum ratings at Tj = 25 C, unless otherwise specified Table 2 Maximum ratings Values Parameter Symbol Unit Note / Test Condition Min. Typ. M
