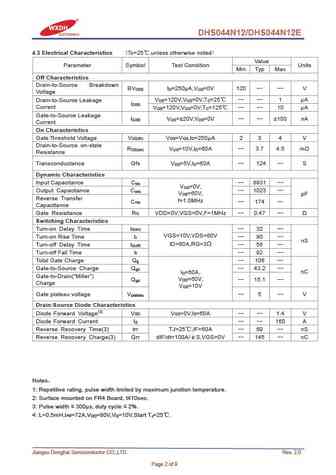

DHS044N12/DHS044N12E160A 120V N-channel Enhancement Mode Power MOSFET1 DescriptionThe N-channel enhancement mode power mosfets used2 DV = 120VDSSadvanced splite gate trench technology design, providedexcellent Rdson and low gate charge. Which accords withGR = 3.7mDS(on) (TYP)the RoHS standard.13 SI = 160AD2 Features Low on resistance Low gate charge Fast switching Low reverse transfer capacitances 100% single pulse avalanche energy test 100% V testDS3 Applications Synchronous rectification in SMPS Motor control and drive Battery management TO-220TO-263 UPS Power tools4 Electrical Characteristics4.1 Absolute Maximum Ratings (Tc=25,unless otherwise noted)Parameter Symbol Rating UnitsDrian-to-Source Voltage V 120 VDSSGate-to-Source Voltage V 20 VGSST =25(Silicon Limi
