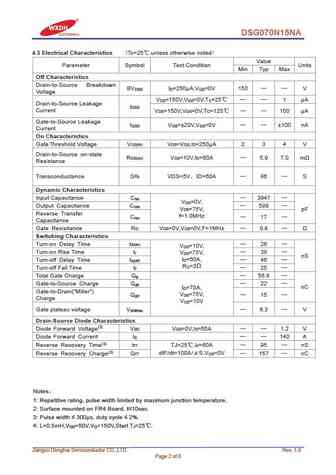

DSG070N15NA140A 150V N-channel Enhancement Mode Power MOSFET1 Description2 DV =150VDSSThis N-channel enhancement mode power MOSFETutilizes advanced Split Gate Trench technology, whichGR = 5.9mDS(on) (TYP)provides excellent Rdson and low Gate charge at the same1time. Which accords with the RoHS standard.3 SI = 140AD2 Features Low on resistance Low gate charge Fast switching Low reverse transfer capacitances 100% single pulse avalanche energy test 100% V testDS3 Applications Motor control and drive Battery management UPS (Uninterrupible Power Supplies)TO-2204 Electrical Characteristics4.1 Absolute Maximum Ratings (Tc=25,unless otherwise noted)Parameter Symbol Rating UnitsDrian-to-Source Voltage V 150 VDSSGate-to-Source Voltage V 20 VGSST =25 140 ACContinuous DrainID
