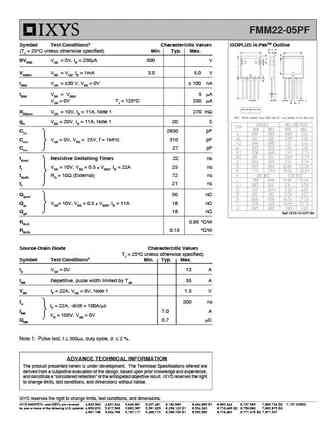

Advance Technical InformationPolarHVTM HiPerFETVDSS = 500VFMM22-05PFN-Channel Power MOSFETID25 = 13APhase Leg Topology RDS(on) 270m 33T1trr(max) 200ns5544T2ISOPLUS i4-PakTM1122Symbol Test Conditions Maximum RatingsTJ -55 ... +150 CTJM 150 C1Tstg -55 ... +150 CIsolated TabVISOLD 50/60HZ, RMS, t = 1min, leads-to-tab 2500 ~V5TL 1.6mm (0.062 in.) from case for 10s 300 CTSOLD Plastic body for 10s 260 CFeaturesFC Mounting force 20..120 / 4.5..27 N/lb. Silicon chip on Direct-Copper Bond(DCB) substrate- UL recognized packageSymbol Test Conditions Maximum Ratings - Isolated mounting surface- 2500V electrical isolationVDSS TJ = 25C to 150C 500 V Avalanche ratedVDGR TJ = 25C to 150C, RGS = 1M 500 V Low QG Low Drain-to-Tab ca
