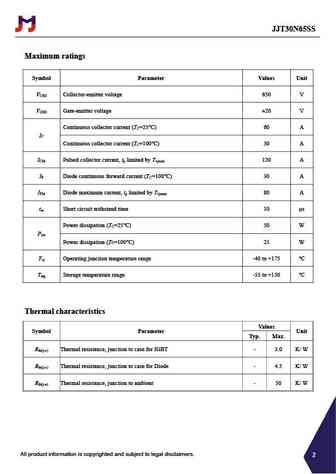

650V 30A Trench and Field Stop IGBTJJT30N65SSKey performance: V =650VCETO-220F I =30A@T =100C C V =1.7 VCE(sat)Features: High ruggedness performance. 10s short circuit capability.GCE Positive V temperature coefficient.CE (sat) High efficiency for motor control. Excellent current sharing in parallel operation. RoHS compliant.Applications: Home appliances Motor drives General inverterPackage parametersType Marking Package Packaging methodJJT30N65SS T3065SS TO-220F TubeAll product information is copyrighted and subject to legal disclaimers. REV A.1.0 | DEC 20231JJT30N65SSMaximum ratingsSymbol Parameter Values UnitV Collector-emitter voltage 650 VCESV Gate-emitter voltage 20 VGESContinuous collector current (T =25) 60 ACICContinuous collector current (T =100)
