Скачать даташит для s9013:

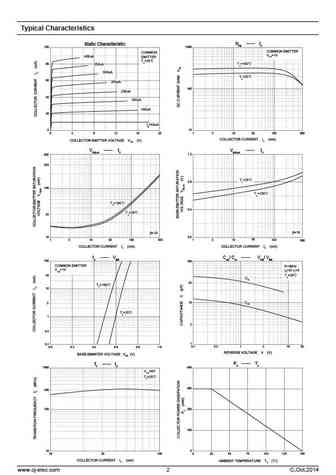

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD J C T SOT-23 Plastic-Encapsulate Transistors S9013 TRANSISTOR (NPN) SOT23 FEATURES High Collector Current. Complementary to S9012. Excellent hFE Linearity. 1. BASE MARKING: J3 2. EMITTER 3. COLLECTOR MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage 40 V VCEO Collector-Emitter Voltage 25 V VEBO Emitter-Base Voltage 5 V IC Collector Current 500 mA PC Collector Power Dissipation 300 mW RJA Thermal Resistance From Junction To Ambient 416 /WTj Junction Temperature 150 Tstg Storage Temperature -55+150 ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=0.1mA, IE=0 40 V Collector-emitter breakdown vo
